STRAPPING SYSTEMS
Need strap? Click here
Fully Automatic Strapping Systems
702B (Belted)
Strap Width 5 mm, 6 mm, 9 mm or 12 mm
Strap Tension 1-32 kg (for 5 mm, 6 mm, and 9 mm)
1-45 kg (for 12 mm)
Speed Up to 40 packages per minute
(Cycle speed up to 65 straps per minute)
Net Weight 225 kg
Electrical Requirements 110V, 220V, 230V 50/60Hz 1PH
220V, 380V, 400V 50/60Hz 3PH
702BP (Belted Pressing unit)
Strap Width 5 mm, 6 mm, 9 mm or 12 mm
Strap Tension 1-32 kg (for 5 mm, 6 mm, and 9 mm)
1-45 kg (for 12mm)
Speed Up to 36 packages per minute
(Cycle speed up to 65 straps per minute)
Net Weight 250 kg
Pneumatic Source 6 bar
Air Consumption 7.5 liter/cycle
Electrical Requirements 110V, 220V, 230V 50/60Hz 1PH
220V, 380V, 400V 50/60Hz 3PH |
Semi-Automatic Strapping Systems

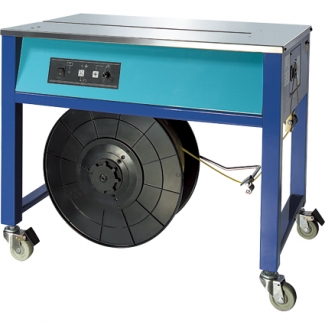

TDI 206
STRAP WIDTH 5-15 mm
SPEED 2.5 SEC/Strap
POWER SUPPLY 100, 110, 220, 230, 240V., 50/60HZ., 1-Phase
POWER CONSUMPTION 0.4KW
MACHINE TENSION 5-55KGS
MACHINE DIMENSION 895mm(L) x 565mm(W) x 740mm (H)
MACHINE WEIGHT 100 KGS

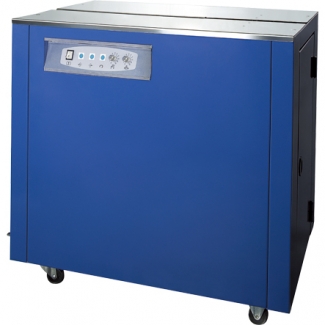

 TDI 305
STRAP WIDTH 5-15 mm
SPEED 2.5 SEC/Strap
POWER SUPPLY 100, 110, 220, 230, 240V., 50/60HZ., 1-Phase
POWER CONSUMPTION 0.2KW
MACHINE TENSION 2-55KGS
MACHINE DIMENSION 780mm(L) x 550mm(W) x 750mm (H)
MACHINE WEIGHT 63 KGS
|
Automatic Strapping Systems
Robust & Compact Mechanical Strapping Head
The 710L uses the latest DC brush less motor technology to provide the highest level of accuracy and reliability on the market. All motors are German made. The strapping head has no belts, clutches or pulleys. It is straightforward technology with few moving parts. Therefore, with 30% fewer parts, the Eagle 710L requires fewer adjustments, has fewer wearable components, and requires less maintenance. The design of the 710L simplifies all operations and is thereby extremely cost effective.

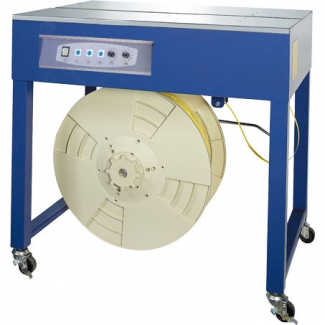

TDI 205
STRAP WIDTH 5-15 mm
SPEED 2.5 SEC/Strap
POWER SUPPLY 100, 110, 220, 230, 240V., 50/60HZ., 1-Phase
POWER CONSUMPTION 0.2KW
MACHINE TENSION 2-55KGS
MACHINE DIMENSION 780mm(L) x 550mm(W) x 750mm (H)
MACHINE WEIGHT 63 KGS
|
