SHRINK WRAP SYSTEMS
We offer a full line of shrink wrap machines. In addition, we offer shrink wrap.
|
.jpg)

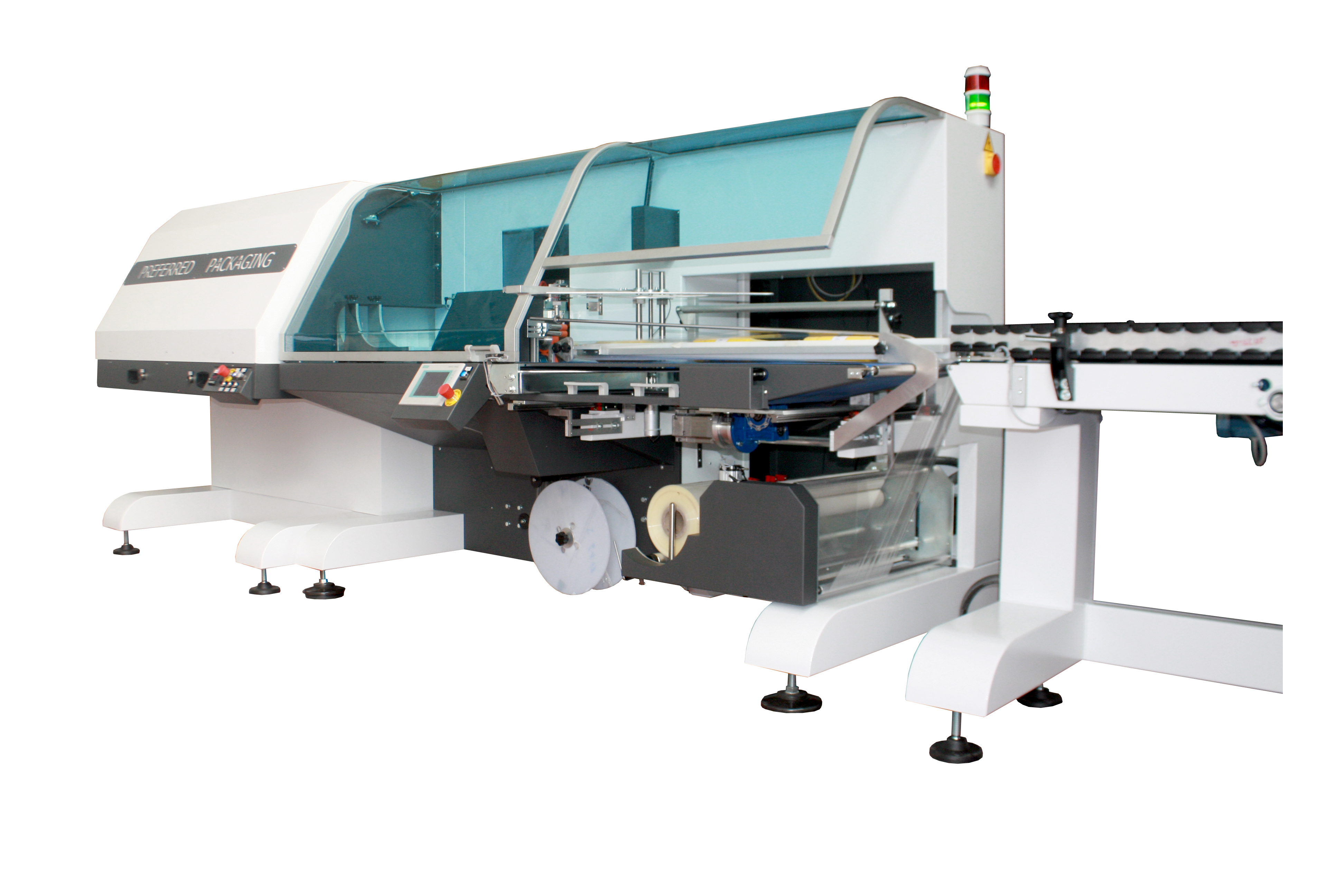

STAR - CANTER LEVEL SIDE SEALING MACHINES
WITH PATENTED FILM FEED SYSTEM
|

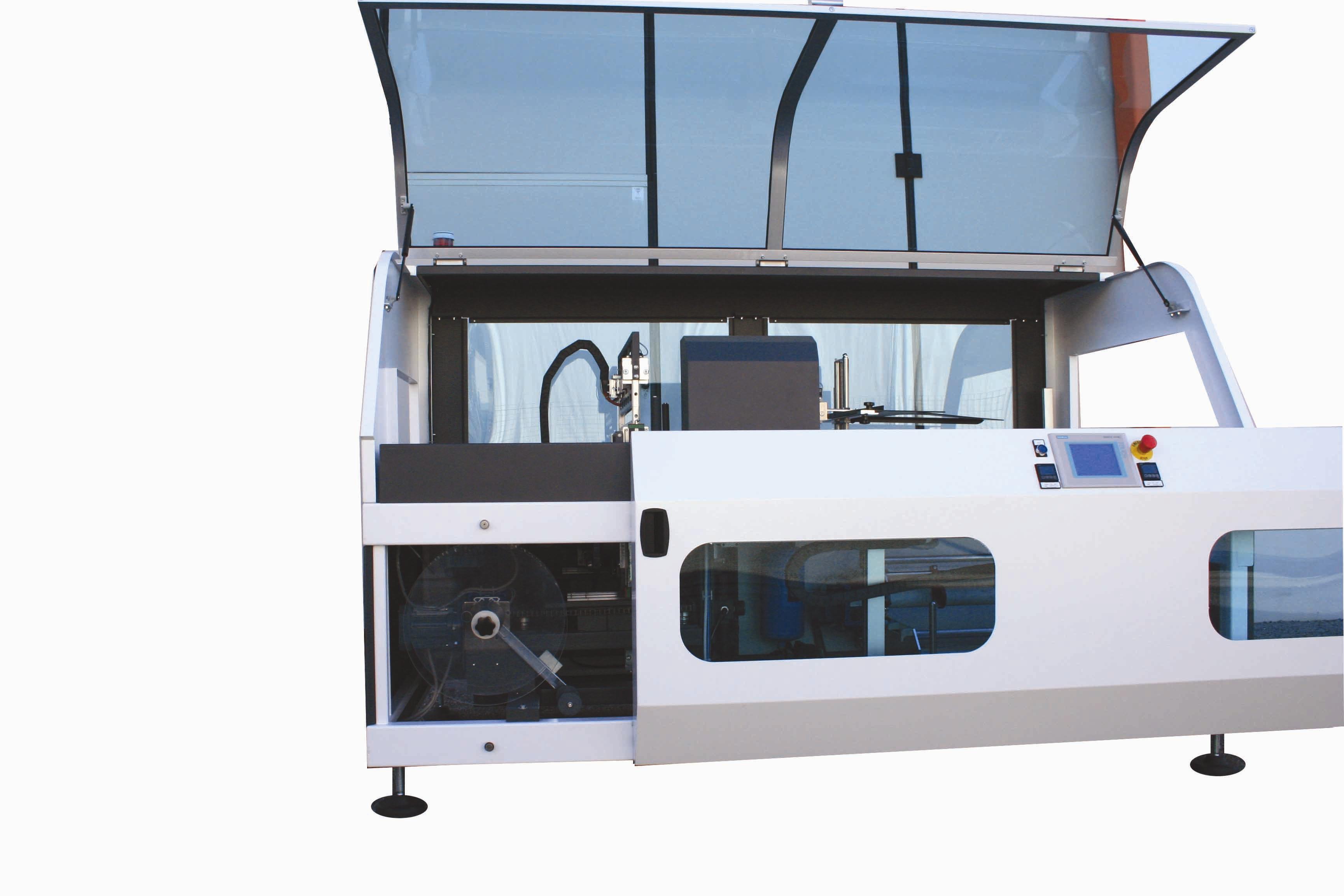

Star EVO Shrink Wrap Machine
Video |

|

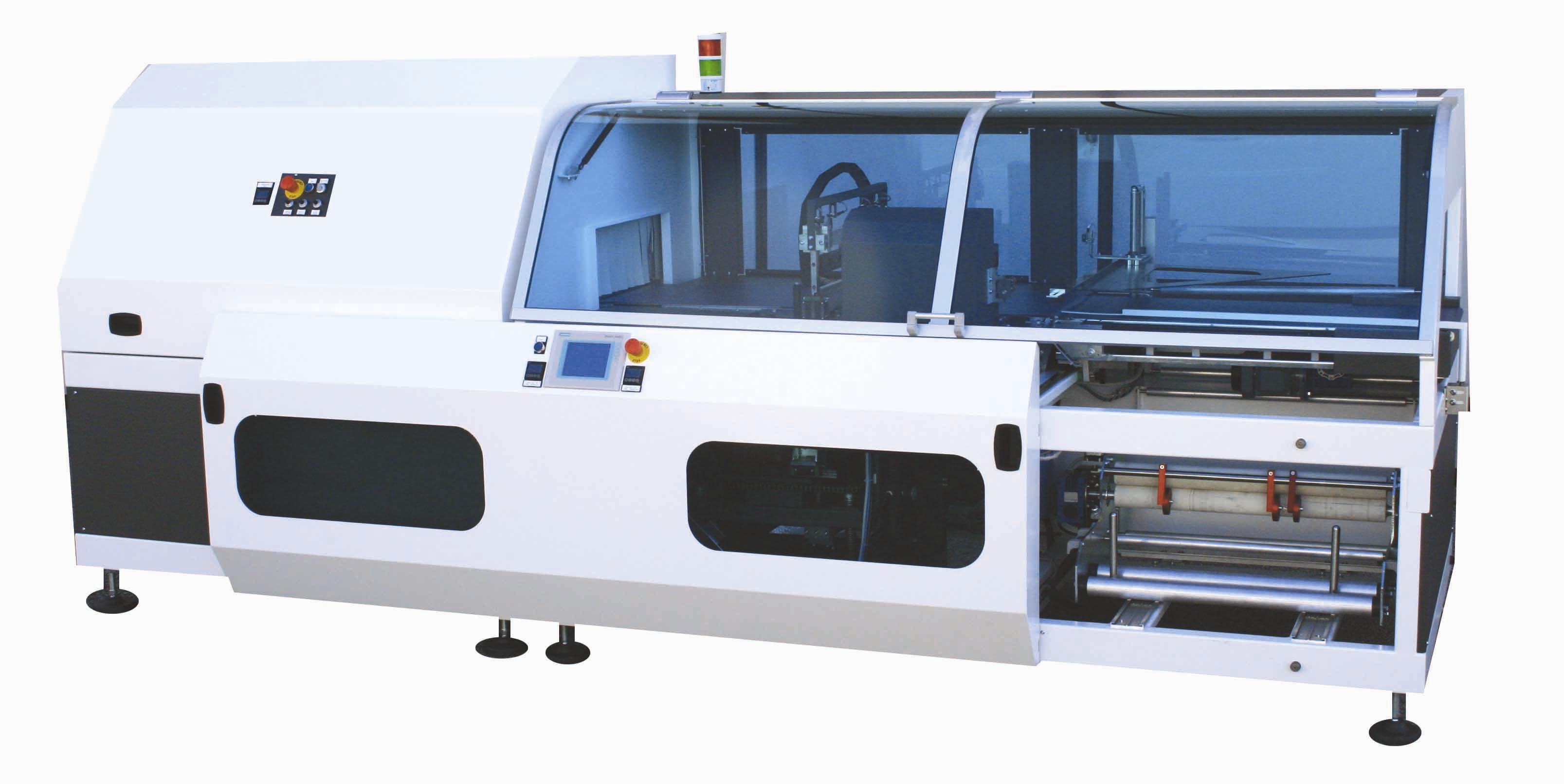

F5000 High Speed Continuous Box Motion Side seal |
|

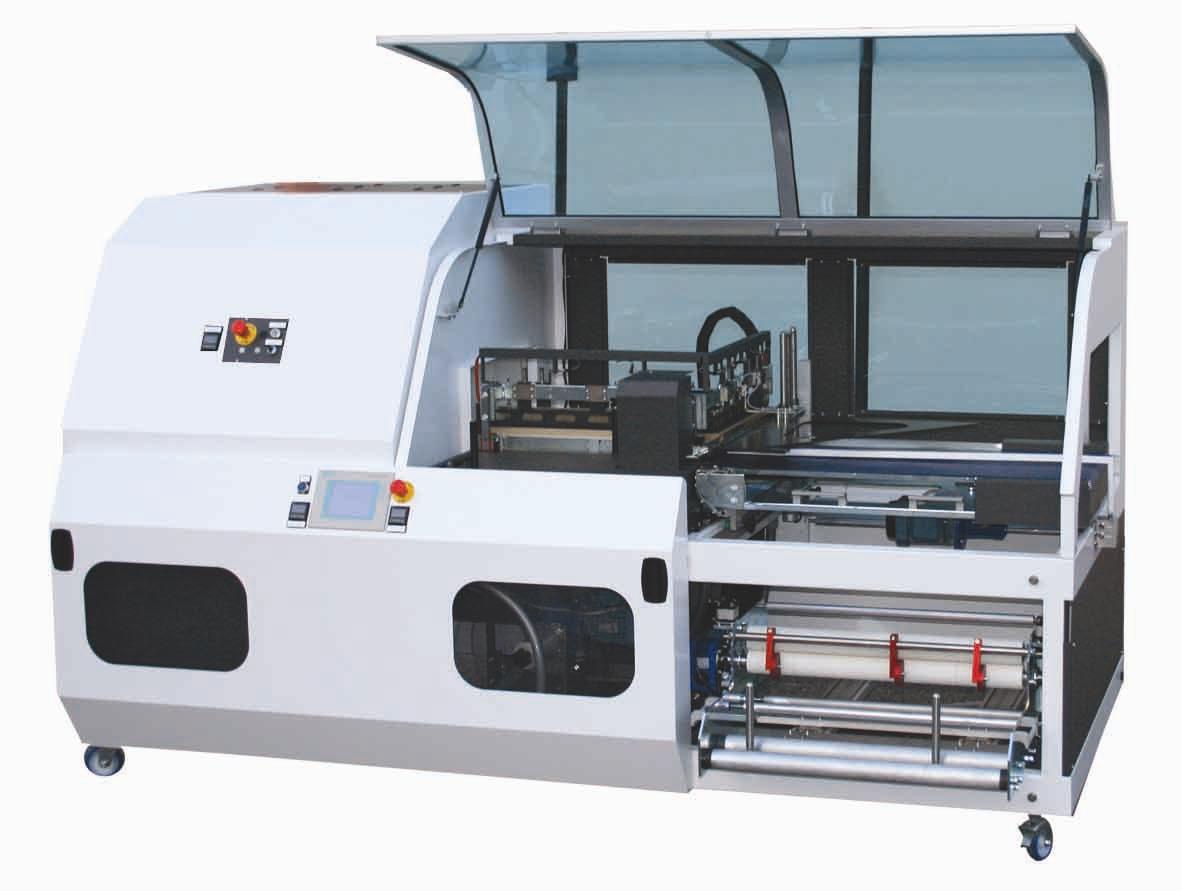

5060HRT Full Automatic L Sealer
POWER SUPPLY 220, 50/60HZ., 3-PHASE
MAX. CONSUMPTION POWER 8Kw
Products max width: 420mm
Products max length 600mm
MAX. height of package 170mm
MACHINE DIMENSION 1120mm (L) X 660mm (w) X 550mm (H)
MAX. DIMENSION OF FILM 400mm X Ø250mm |

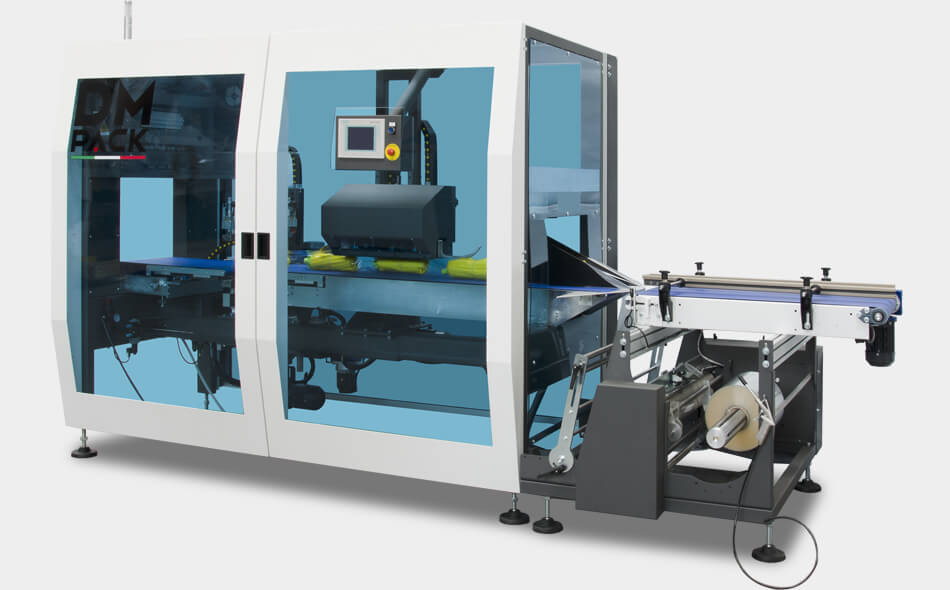

STAR EVO SS Top sealing flowpack
Top sealing flowpack machine whose film wraps completely around the product. The two sides of the film are merged and are sealed above . New generation and design machine, super-accessible and simple to use. Excellent for total packaging and closure of various types of products with flat sheet, heat shrinking film. A highly flexible machine, thanks to the possibility of having it in various sizes; with a fixed rotating, intermittent or box motion bar for simple sealing, wire or knurled and simple packaging or with Euroforo and/or easy opening. It aims to increasingly reduce film consumption and give aesthetically pleasant results. Excellent for food and other sectors.
|

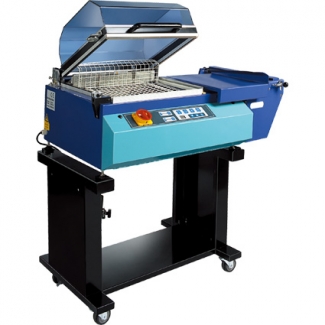

TDI - 346 Video
$68.00 Per Month*ask for details
POWER SUPPLY 110/220/230/240V., 50/60HZ., 1-PHASE
MAX. CONSUMPTION POWER 3.2Kw
EFFECTIVE POWER CONSUME 1.3-1.9Kw
SEALING DIMENSION 320mm (D) X 460mm (L)
MAX. HEIGHT OF PACKAGE 120mm
MACHINE DIMENSION 1120mm (L) X 660mm (w) X 550mm (H)
MAX. DIMENSION OF FILM 400mm X Ø250mm
|

TDI 455 Spec Sheet
$79 Per Month *ask for details
POWER SUPPLY 110/220/230/240V., 50/60HZ., 1-PHASE
MAX. CONSUMPTION POWER 3.77Kw
EFFECTIVE POWER CONSUME 1.6-2.3Kw
SEALING DIMENSION 420mm (D) X 550mm (L)
MAX. HEIGHT OF PACKAGE 250mm
MACHINE DIMENSION 1320mm(L) X 820mm (W) X 645mm (H)
MAX. DIMENSION OF FILM 600mm X Ø250mm
|

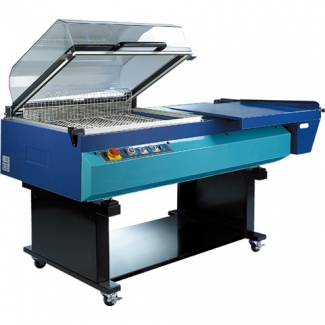

TDI 680 Spec Sheet
Parts Book
POWER SUPPLY 220/380/400V., 50/60HZ., 3-PHASE
MAX. CONSUMPTION POWER 5.3Kw
EFFECTIVE POWER CONSUME 2.3-3.4Kw
SEALING DIMENSION 620mm (D) X 800mm (L)
MAX. HEIGHT OF PACKAGE 250mm
MACHINE DIMENSION 1575mm (L) X 1020mm (W) X 645mm (H)
MAX. DIMENSION OF FILM 800mm XØ250mm
|

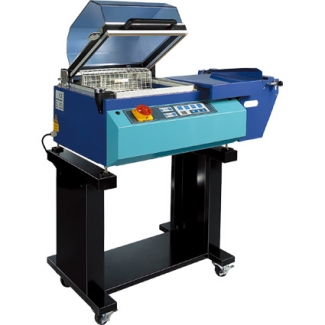

TDI 238 Spec Sheet
$46.00 Per Month *Ask for detail
POWER SUPPLY 110/220/230/240V., 50/60HZ., 1-PHASE
MAX. CONSUMPTION POWER 3.2Kw
EFFECTIVE POWER CONSUME 1.3-1.9Kw
SEALING DIMENSION 280mm (D) X 380mm (L)
MAX. HEIGHT OF PACKAGE 120mm
MACHINE DIMENSION 1020mm (L) X 620mm (W) X 550mm (H)
MAX. DIMENSION OF FILM 360mm X Ø250mm
|

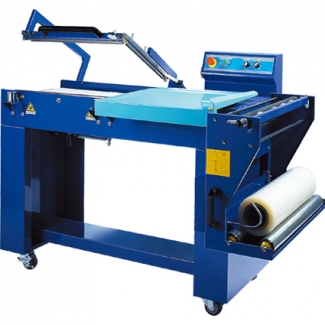

TDI 455M Spec Sheet
POWER SUPPLY 110V/220V, 50HZ/60HZ, 1-PHASE
MAX. POWER CONSUMPTION 1Kw
SEALING DIMENSION 400mm (W) X 550mm (D)
MAX. FILM ROLL DIMENSION 600mm X Ø300mm |
TDI 455MT
$160 Per Month *ask for details
POWER SUPPLY 220V., 60HZ., 3-PHASE ; 400V., 50HZ., 3-PHASE
MAX. CONSUMPTION POWER 9Kw
SEALING DIMENSION 400mm (W) X 550mm (D)
TUNNEL INLET DIMENSION 400mm (W) X 200mm (H)
MAX. FILM ROLL DIMENSION 600mm X Ø300mm
WORKING PLATE HEIGHT 900mm
MACHINE DIMENSION 2570mm (L) X 870mm (W) 1600mm (H)
MAX. PACKING HEIGHT 150mm
MACHINE WEIGHT 400Kg
|

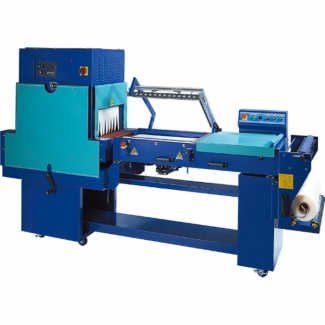

TDI 455PT Spec Sheet
POWER SUPPLY 220V., 60HZ., 3-PHASE ; 400V., 50HZ., 3-PHASE
MAX. CONSUMPTION POWER 9Kw
SEALING DIMENSION 400mm (W) X 550mm (D)
TUNNEL INLET DIMENSION 400mm (W) X 200mm (H)
MAX. FILM ROLL DIMENSION 600mm X Ø300mm
WORKING PLATE HEIGHT 900mm
MACHINE DIMENSION 2570mm (L) X 870mm (W) 1600mm (H)
MAX. PACKING HEIGHT 150mm
MACHINE WEIGHT 400Kg |
|
|

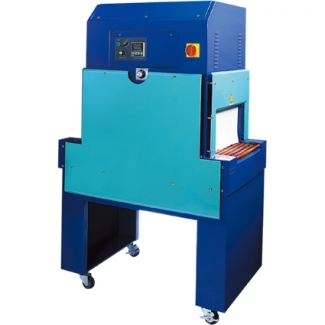

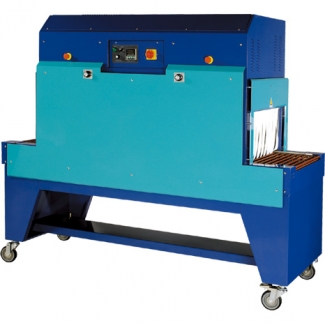

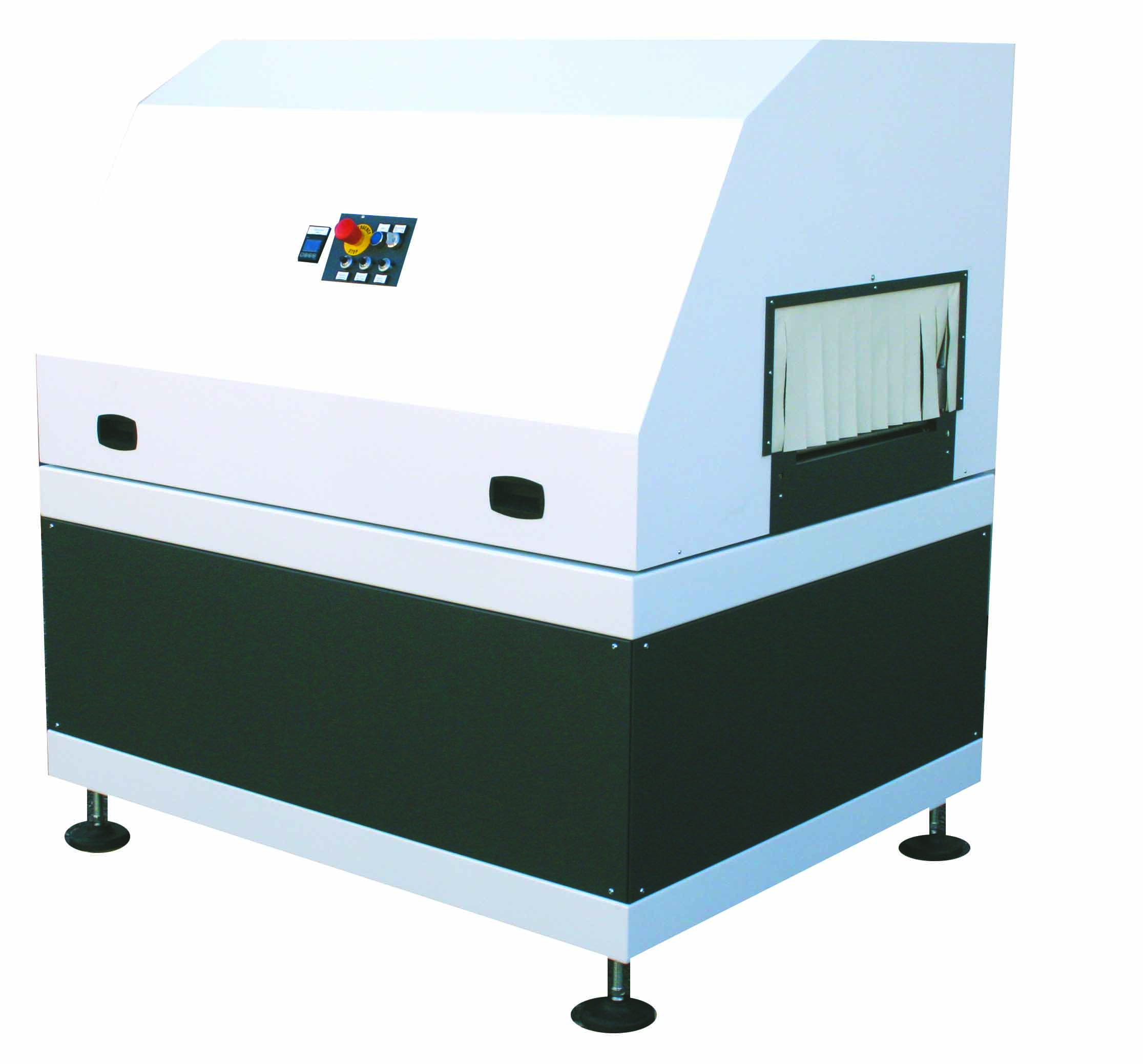

TDI 420 Spec Sheet
POWER SUPPLY 220V., 60HZ., 3-PHASE ; 400V., 50HZ., 3-PHASE
MAX. CONSUMPTION POWER 7Kw
TUNNEL INLET DIMENSION 400mm (W) X 200mm (H)
MACHINE DIMENSION 1000mm (L) X 690mm (W) 1640mm (H)
MACHINE WEIGHT 235Kg
|
 |
|
|
