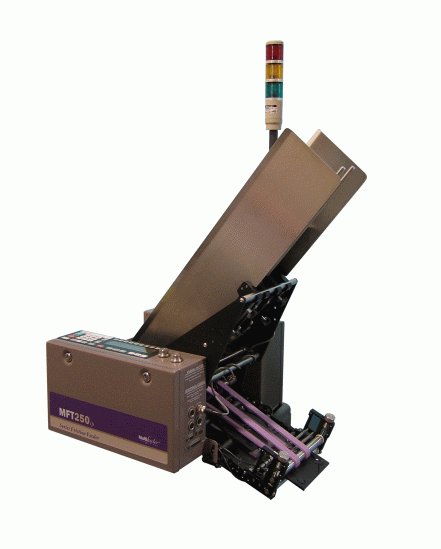

MFT250IP - Industrial Performance

•  Brochure (PDF format)

MFT250IP Typical Applications

• Pharmaceutical Inserts
• Blister Packs
• Compact Discs
• Coupons
• Booklets
• Stickers
• Z-Folds
• Labels
• Inserts
• Credit Cards
• And many more...

MFT250IP Specifications

• Minimum product size: 25mm(W) x 38mm(L) [1" x 1.5"]
• Maximum product size: 200mm(W) x 300mm(L) [8" x 12"]
• Minimum product thickness: 0.05mm [0.002"]
• Maximum product thickness: 27mm [1"]
• Maximum belt speed: 246,000 mm/min [9700 in/min]
• Operating temperature: 10-35 Degrees C [50-95 Degrees F]
• Power requirements: 110 (230) volts 50-60 HZ max 6 amps
• Total unit weight: 29 kg [64 lbs]
• Product magazine: 380mm [15"]
• Feeder discharge: five standard lengths

MFT250IP Standard Features

• Portable unit: Self-contained unit with only one electrical enclosure
• Computer controlled: Computer control provides thousands of control calculations per second for precise start, stop, watch dog and multiple product detection
• Easy interface: Standard signals available for easy interface with existing computer, PLC or other host machinery
• Production log: Automatically stores your production history in the feeder's computer with production count, and fault logging with time, date and type of fault
• Intuitive user interface: Custom 22-key sealed membrane key pad with 2 x 40 character LCD display
• User-friendly changeover: Easy and accurate changeover with twist lock handles
• Ruggedly built: Hardened stainless steel shafts and sealed bearings for maximum life and 24-hour a day operation
• Quick belt replacement: Three piece shaft assemblies for quick maintenance
• Three-color signal light: Green = ready, Yellow = low product, Red = fault
• Pre-select counter: Standard pre-select product count (1-999 per cycle)
• Optically isolated signals: All interface signals isolated for accuracy
• Built for harsh environments: Stainless steel shafts, sealed bearings, surface-treated aluminum construction and sealed cast aluminum enclosures to protect internal parts
• One year warranty: One year warranty on parts and labor
• Software Lockout Function Option: Allows user to lock out some or all feeder functions for simplicity for the operator.
• Encoder Speed Match Option: Allows for an input from an encoder connected directly to the feeder to monitor the speed of the host machine. The feeder will monitor the speed of the host machine and adjust its timing accordingly.

MFT250IP Options

• Automatic Product Loader
• Automatic Drop Table
• Remote Key Pad
• Static Reduction System
• Tall Product Magazine
• Portable Stand
• Catch Tray
• Barcode Scanner
• Deskjet Printer

The MFT250IP-SD

Special Features

• The MFT 250IP SD has a 25mm (1") long discharge.
• This discharge length is best if there is a small amount of space for the feeder.

The MFT250IP-ED

Special Features

• The MFT 250IP ED friction feeder has a 200mm (8") long discharge.
• This is the most popular length discharge for the MFT 250.
• The longer discharge can also be used to mount a bar code reader or a vision system onto the discharge of the feeder to inspect the product as it is fed.

The MFT250IP-XED

Special Features

• The MFT 250IP XED has a 375mm (15") long discharge to dispense a product 15" from the feeder.
• This discharge provides up to 15" of space to mount an inkjet system of or a labeling machine directly onto the discharge.
• The longer discharge can also be used to mount a bar code reader or a vision system onto the discharge of the feeder to inspect the product as it is fed.

The MFT250IP-XLD

Special Features

• The MFT 250IP XLD has a 600mm (24") long discharge to dispense a product 15" from the feeder.
• This discharge provides up to 24" of space to mount an inkjet system of or a labeling machine directly onto the discharge.
• The longer discharge can also be used to mount a bar code reader or a vision system onto the discharge of the feeder to inspect the product as it is fed.

The MFT250IP-SLD

Special Features

• The MFT 250IP SLD has a 900 mm (36") discharge to dispense the product 36" from the feeder.
• The long discharge table can be used to label product directly onto the discharge of the feeder with a ink jet or labeling machine.
• The longer discharge can also be used to mount a bar code reader or a vision system onto the discharge of the feeder to inspect the product as it is fed.

The MFT250IP-XED-150

Special Features

• The MFT 250IP XED 150 has a 375 mm long (15") 150mm (6") wide discharge.
• This discharge works best to allow the feeder to feed into a 6" or greater target that is 15" from the feeder. This works well on Folder Gluer Machines where tight quarters are often present.
• The longer discharge can also be used to mount a bar code reader or a vision system onto the discharge of the feeder to inspect the product as it is fed.

The MFT250IP-XLD-150

Special Features

• The MFT 250IP XLD 150 has a 600 mm long (24") 150mm (6") wide discharge.
• This discharge works best to allow the feeder to feed into a 6" or greater target that is 24" from the feeder. This works well on Folder Gluer Machines where tight quarters are often present.
• The longer discharge can also be used to mount a bar code reader or a vision system onto the discharge of the feeder to inspect the product as it is fed.
