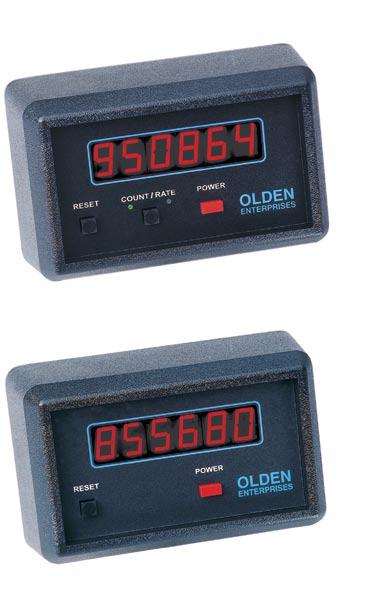

RTC (Rate & Total Count) and TC (Total Count) Counters are fully
electronic with no moving parts. Both feature very large and bright LED displays. The
display can easily be read from 15 feet away.

• The sensor counts using invisible infrared light. Nothing ever touches the piece
being counted, which can be up to 2” away.

• RTC & TC counters have an electronic memory that uses advanced electronic
circuitry to retain the count. There is no battery that ever needs replacement!

• The RTC counter display can be switched to display the count rate in pieces per
hour. The rate function is displayed until the next push of the count/rate switch.

• Sensor has a 10’ curly cord and mounts with its own magnet. Adapters are provided
for non-magnetic surfaces.

• Counters come with a new generation sensor and standard 6” post mount.

• Counter body is compact and easy to install without tools.
The counters are used on folders, stitchers, and other bindery equipment, as well as
various inserters, mailing machines, etc. They mount to the machine with one of four
available mounts. The half-round at the end of the post slides into a matching hole in
the bottom of the counter case. The post mount slides over any vertical edge up to 5/8”
thick and is secured by a thumbscrew.

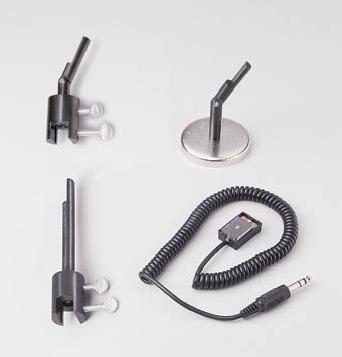

Optional mounts: The Magnetic Base Mount
features an adjustable post, which attaches with
a strong magnet to a horizontal surface and has the short post that can be tilted up/down
and locked in place. This allows the display to be aimed at the operator’s eyes. The Vertical
Magnetic Base Mount (not pictured) has a straight, non-adjustable post and is designed
to allow the counter to be mounted on vertical surfaces. The Adjustable Post Mount has
a short post that can be tilted up/down and locked in place, aiming the display at the
operator’s eyes.

Specifications: Power requirements: 110 volts, 60 Hz, 5 watts
Maximum counting speed: 200,000+ per hour
Maximum count: 999,999
Counter Size: 5.5”W x 3.5”H x 2.3”D
Sensor Size: 1.5” x 1” x .6”
Each counter is bench tested for 100 hours, and includes a one-year warranty on parts, materials and workmanship.
